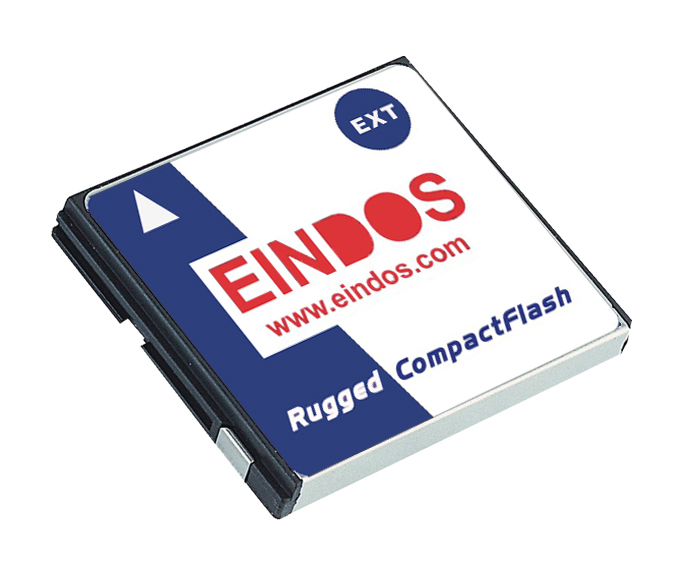

EINDOS-COMPACTFLASH
FEATURES |
|
 |
|
|
|
Size:
|
36.40x42.80x3.30mm
|
|
Standard:
|
Type I
|
|
Capacities:
|
256MB to 12.0GB
|
|
CIS:
|
256 Bytes
|
|
Read Current:
|
55mA(5V,3.3V)
|
|
Write Current:
|
55mA(5V,3.3V)
|
|
Supporting:
|
PC Card ATA
|
|
|
IDE Interface Modes
|
|
VCC Max Ratings:
|
-0.3V to +6.0V
|
|
|
|
Start Up Time:
|
<10m/sec
|
|
 |
|
Sleep to Idle:
|
2mS (Max)
|
| |
|
|
Data Transfer:
|
up to 16.6Mbytes
|
|
The
EINDOS CF-XXX Series CompactFlash Memory Card are the storage solution
specially designed for use in demanding industrial and military
environments, employ a variety of sophisticated error checking and flash
management utilities allowing for levels of reliability and endurance in
excess of the physical FLASH. |
|
Command to DRQ:
|
2mS (Max)
|
|
|
Sector Write:
|
2mS (Typical)
|
|
|
Data Endurance:
|
5,000,000 cycles
|
|
|
Data
reliability: |
1 in 1014 bits,
read |
|
It
conforms to CompactFlash Specification and is designed with precision
mechanics to enable host devices to read/write from the CompactFlash
interfaced into Flash media, Compliant with ISA bus interface standard
and PC card ATA standard. |
|
Option: |
DMA |
|
|
Flash: |
SLC NAND |
|
|
VCC:
|
4.5V to 5.5V
|
|
EINDOS
Rugged CompactFlash is designed to be ultra high quality while remaining
an affordable memory solution, it are Water resistant, very High and low
insulated, the operating temperature range from -55C to +100C, extreme
shock and crush resistant which exceed the traditional industrial rules
and are perfect for most extreme harsh Military and Industrial
applications. Our Rugged CompactFlash use an advanced wear level
algorithm, We can guarantee our CF solutions to last a minimum of
3,000,000 write and erase cycles (5,000,000 in Typical) and fully guarantee
data retention. |
|
|
3.0V to 3.6V
|
|
|
Configuration Option:
|
Data Programming
|
|
|
Operating Temp.
|
-55C to +100C
|
|
|
Storage Temp:
|
-90C to + 139C
|
|
|
Operating Humidity:
|
5% to 96%
|
|
|
Operating Shock:
|
3000G (Max)
|
|
The
EINDOS-CF Series have two different version, One is for normal CF operation,
another will emulate IDE hard disk drive -Fixed Disk Operation. |
|
Operating Vibration:
|
50G peak to peak
|
|
|
กก
|
0.5 sina wave
|
|
Order
Information: |
|
Altitude:
|
Up to 80,000 ft
|
|
EINDOS-CF-XXX
(-XXX: 256M,512M,1.0G,2.0GB,4.0G,8.0G,12.0G) |
|
MTBF:
|
>1,000,000 Hrs
|
|
EINDOS-CF-XXX-F
(-XXX: 256M,512M,1.0G,2.0G,4.0G, -F: Fixed Disk) |
|
|
|
|
