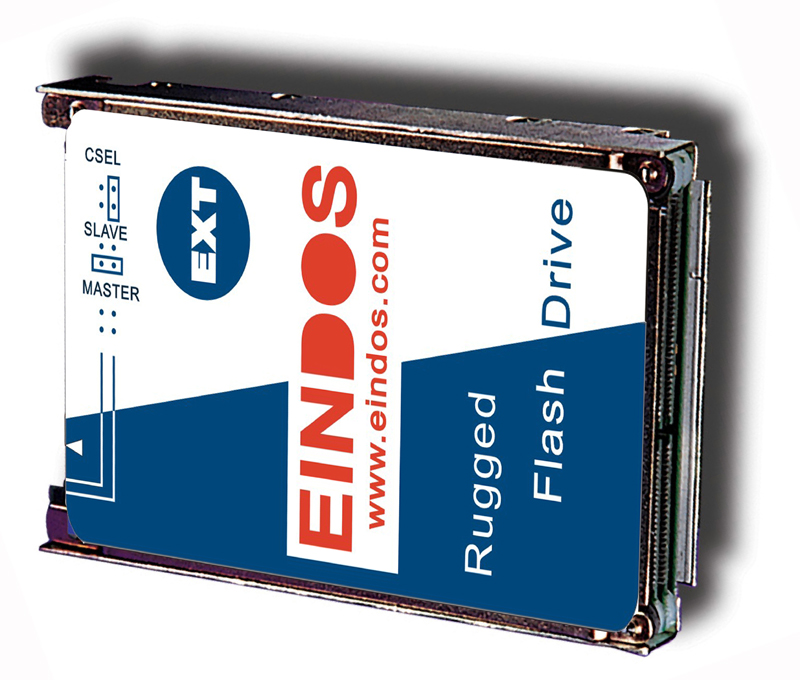

EINDOS-FLASHDRIVE
FEATURES |
|
 |
|
|
|
Size:
|
100.20x69.85x5.90mm
|
|
Standard:
|
2.5"
|
|
Capacities:
|
1GB to 30.0GB
|
|
Sector:
|
512 Bytes
|
|
Interface:
|
Standard IDE
|
|
Pinout:
|
44pin
|
|
Supporting:
|
Master or Slave
|
|
|
IDE interface device
|
|
VCC Max Ratings:
|
-0.3V to +6.0V
|
|
|
|
Start Up Time:
|
<10m/sec
|
|
 |
|
Sleep to Idle:
|
2mS (Max)
|
| |
|
|
Data Transfer:
|
up to 16.6Mbytes
|
|
The
EINDOS-FD-XXX Series 2.5" Rugged Flash Drive are the storage solution
specially designed for use in demanding industrial and military
environments, employ a variety of sophisticated error checking and flash
management utilities allowing for levels of reliability and endurance in
excess of the physical FLASH. |
|
Command to DRQ:
|
2mS (Max)
|
|
|
Sector Write:
|
2mS (Typical)
|
|
|
Data Endurance:
|
5,000,000.00 cycles
|
|
|
Data
reliability: |
1 in 1014 bits,
read |
|
It
conforms to Standard IDE Interface Specification and is designed with precision
mechanics to enable host devices to read/write from the Flash Drive interfaced into Flash media, Compliant with
IDE or EIDE interface standard
and PC card ATA standard. |
|
Compatible: |
ECC |
|
|
Media: |
Solid State |
|
|
VCC:
|
4.5V to 5.5V
|
|
EINDOS
Rugged Flash Drive is designed to be ultra high quality while remaining
an affordable memory solution, no "Spin" noise compared to
traditional rotating Media, very high and low
insulated, the operating temperature range from -55C to +100C, extreme
shock and crush resistant which exceed the traditional industrial rules
and are perfect for most extreme harsh Military and Industrial
applications. Our Rugged Flash Drive use an advanced wear level
algorithm, We can guarantee our Flashdrive solutions to last a minimum of
3,000,000 write and erase cycles (5,000,000 in Typical) and fully guarantee
data retention. |
|
|
3.0V to 3.6V
|
|
Configuration Option:
|
Data Programming
|
|
|
Operating Temp.
|
-55C to +100C
|
|
Storage Temp:
|
-100C to + 151C
|
|
|
Operating Humidity:
|
5% to 96%
|
|
|
Operating Shock:
|
3000G (Max)
|
|
The
EINDOS-FD Series will emulate IDE hard disk drive or fixed Disk
Operation, ECC defect Management compatible. |
|
Operating Vibration:
|
50G peak to peak
|
|
|
กก
|
0.5 sina wave
|
|
Order
Information: |
|
Altitude:
|
Up to 80,000 ft
|
|
EINDOS-FD-XXX
(-XXX: 1.0G,2.0GB,4.0G,8.0G,....) |
|
MTBF:
|
>1,000,000 Hrs
|
|
|
|
|
|
|
